MOLD SIMULATOR – FOR THERMAL BRIDGES & BUILDING COMPONENTS

PSI values straight from your drawing

In just few clicks you can easily calculate the linear transmittance of any thermal bridge, directly from your drawing. You can evaluate the heat loss due to thermal bridges in walls, roofs, pillars, slabs, windows openings and any other building structure. Mold PSI! combines the accuracy of an advanced 2D modelling software with many valuable functions that greatly simplify the thermal analysis process through few simple steps.
Optional plugins can simplify even more the calculation and enhance your reports.

Will there be any Mold?

With Mold PRO you can prevent critical mistakes during the design phase, evaluating in advance the risk of mold growth on building surfaces. The software will find also any area that can be affected by surface or interstitial condensation. Analysis is performed according to ISO 13788:2013 norm.
Mold PRO is inclusive of all the Mold PSI! features and three main plugins.

Dynamic analysis and Thermal lag calculation

Explore the behaviour of building structures over time with Mold Dynamic. In addition to all Mold PRO features, you can easily evaluate dynamic thermal characteristics of homogeneous and non-homogeneous components under any variable boundary condition. Use Mold Dynamic to compute thermal lag for composite structures such as walls, floors, roofs according to ISO 13786 norm.


FEATURES TO MAKE YOU HAPPY

(some features are available only for certain version – please check here)

FOR WINDOWS & MAC OSX

Mold Simulator is available for Windows (any version) and for Mac OSX, in English and Italian languages.

IMPORT  .DXF FILES

Load your dxf file and start working immediately. Textures can be automatically replaced with materials.

AUTOMATIC CAVITIES DETECTION

Mold Simulator automatically detects and calculates air cavities according to ISO6946 (building) or ISO10077-2 (frames).

CREATE YOUR MATERIAL LIBRARY

Create your own material libraries and add or import any material to them. Materials are also saved in the project file.

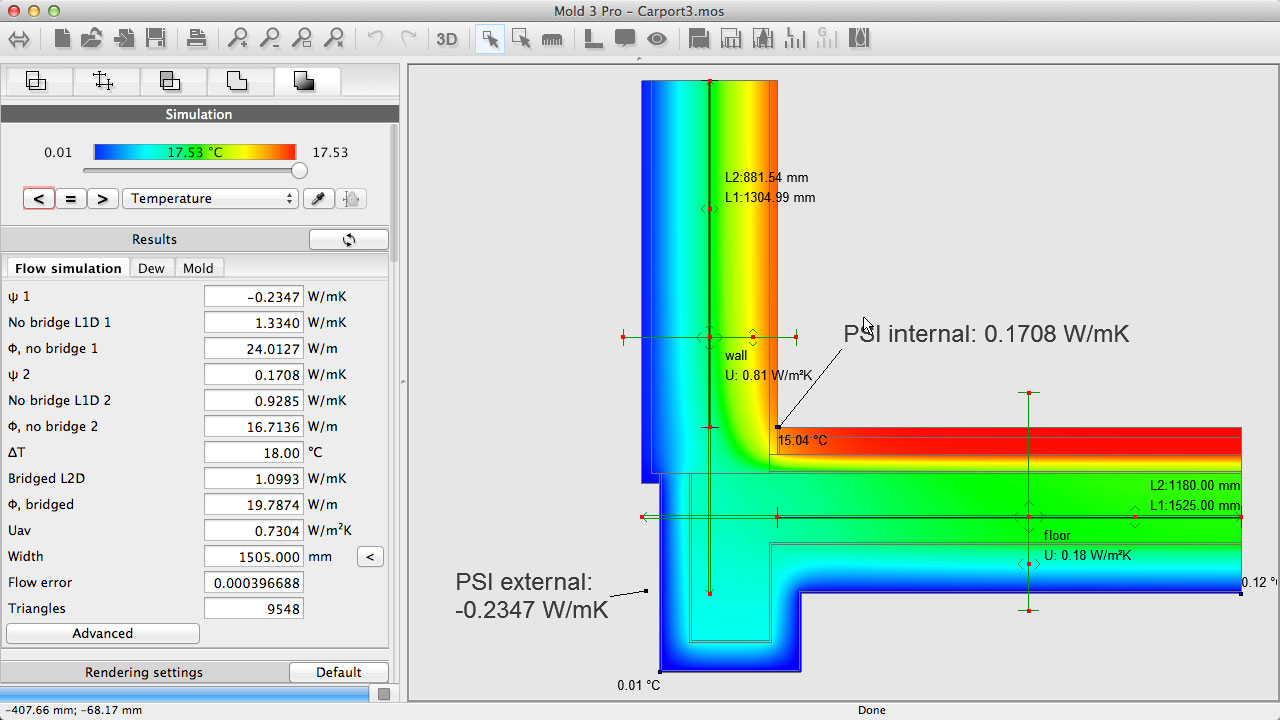

INTERNAL & EXTERNAL Ψ

Mold Simulator can calculate linear transmittance with internal and external dimensions at the same time. You will get both PSI values in the results.

ADJACENT UNHEATED ROOMS

Our software automatically calculates the linear transmittance PSI even in the presence of adjacent unheated rooms, according to ISO10211.

DRAWING TOOLS

You can create and modify your drawing in Mold Simulator with a set of editing tools. Walls and floors can be easily drawn with the layer generator.

SLIDESHOW PRESENTATIONS

Capture different project view and instantly create an amazing slideshow to explain the results of your analysis. Slideshow can be opened with our free Mold Simulator Viewer.


CHOOSE YOUR MOLD SIMULATOR

upgrade from one version to an higher version is always possible

MOLD PSI!

€ 380 € 290

BUY

With Mold PSI!  you can precisely calculate, with few mouse clicks, the two-dimensional linear thermal transmittance Ψ of any thermal bridge according to ISO10211 standard

2D linear transmittance Ψ calculation for thermal bridges with colour display of temperature, isotherms, heat flow

Geometric Tools plugin is required to import .dxf cad files

Report Tools plugin is required to edit reports. Views cannot be customized.

Material Pack plugin is required to work with material libraries (ISO10077-2, EN1745, UNI10351)

MOLD PRO

€ 790

BUY

With Mold PRO, in addition to Ψ value, you can evaluate the risk of Mold and surface or interstitial Condensation in the building structure, according to ISO13788 standard

2D linear transmittance Ψ calculation for thermal bridges with colour display of temperature, isotherms, heat flow

Hygrothermal analysis according to ISO13788: mold risk assesment, surface condensation, interstitial condensation (Glaser)

Works with .dxf cad files

Reports and views customization, 3D extrusion, Material textures

Materials libraries EN ISO 10077-2, EN 1745, UNI 10351 and other special material types

MOLD DYNAMIC

€ 1350

BUY

With Mold DYNAMIC you can make hygrothermal analysis with dynamic time-variable boundary conditions. Mold Dynamic calculates also thermal lag and attenuation for non-homogeneous building structure.

2D linear transmittance Ψ calculation for thermal bridges with colour display of temperature, isotherms, heat flow

Hygrothermal analysis according to ISO13788: mold risk assessment, surface condensation, interstitial condensation (Glaser)

Transient and steady-state modelling, thermal lag calculation, dynamic heat transfer analysis ISO 13786

Works with .dxf cad files

Reports and views customization, 3D extrusion, Material textures

Materials libraries EN ISO 10077-2, EN 1745, UNI 10351 and other special material types



EXTENSIONS for ALL VERSIONS

add more power to your Mold Simulator with optional plugins

BRIDGE GENERATOR

bridgenerator01Generate thermal bridges projects without the need of a cad software. You can add layers, assign materials and set boundary conditions with just few clicks. Once created, thermal bridge is ready for simulation or it can be further edited with internal drawing tools.

IMPORT/EXPORT PACK

Use this plugin to import your projects made with LBNL Therm in Mold Simulator. Add hygrothermal or dynamic analysis to your Therm projects without the need to redesign them. In Mold PSI! you can import drawings from DXF files and export to DXF files, as with higher versions.

ISO 15099

With this plugin you will be able to implement the ISO 15099 specifications for the calculation of cavities, the setting of boundary conditions and to compute glazing systems and filling mixtures.


EXTENSIONS for MOLD PSI!

these plugins are already included in Mold PRO and Mold DYNAMIC

GEOMETRIC TOOLS

Features included in this plugin will reduce the time required to prepare your projects: import drawings from DXF files, automatic detection of cavities, drawing construction guides, subdivide and manage projects in blocks, geometrically transform entire project.

MATERIALS PACK

Choose the material to assign your project from a comprehensive material database included in ISO10077-2, EN1745, UNI10351 norms. With this pack you will have access also to additional special material types (EN ISO 10077-2 insulation panel, segment, transparent, gas).

REPORT TOOLS

With this plugin you will edit and customize your calculation reports and create your own templates library with different layouts. Choose data and images to be included in your printed document. Add your logo and your company data to create custom professional reports.
